Rainy75RT WOBKey Keyboard Kit

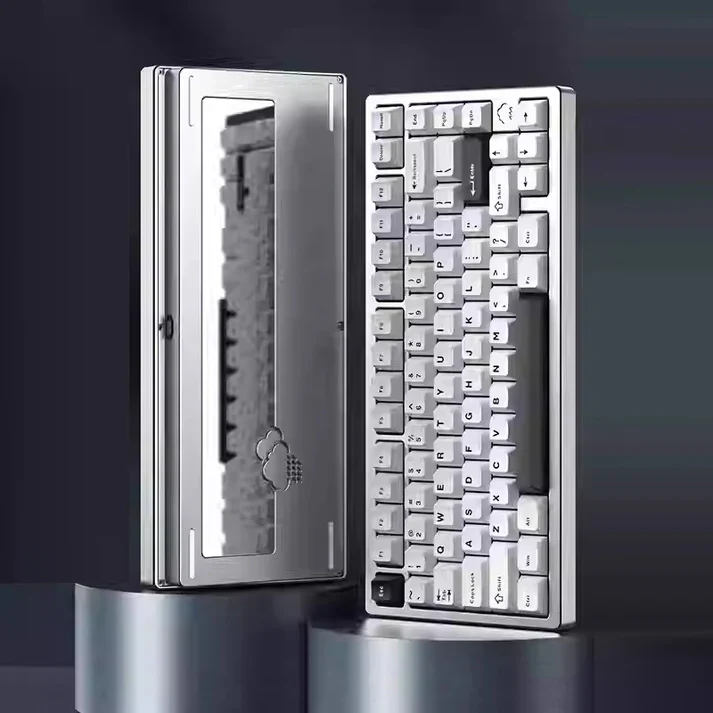

Standard : FR4 plate / Mirrored base weight

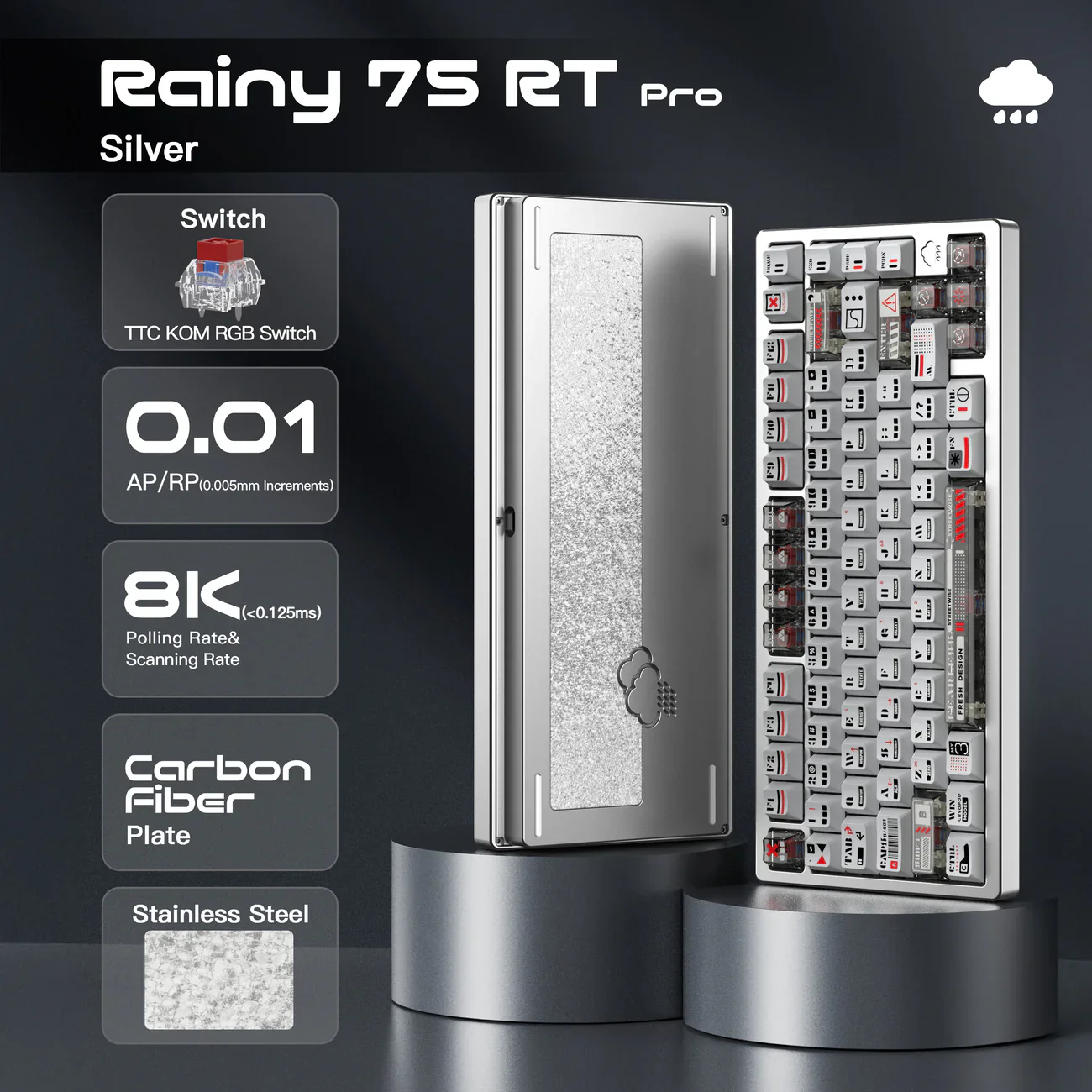

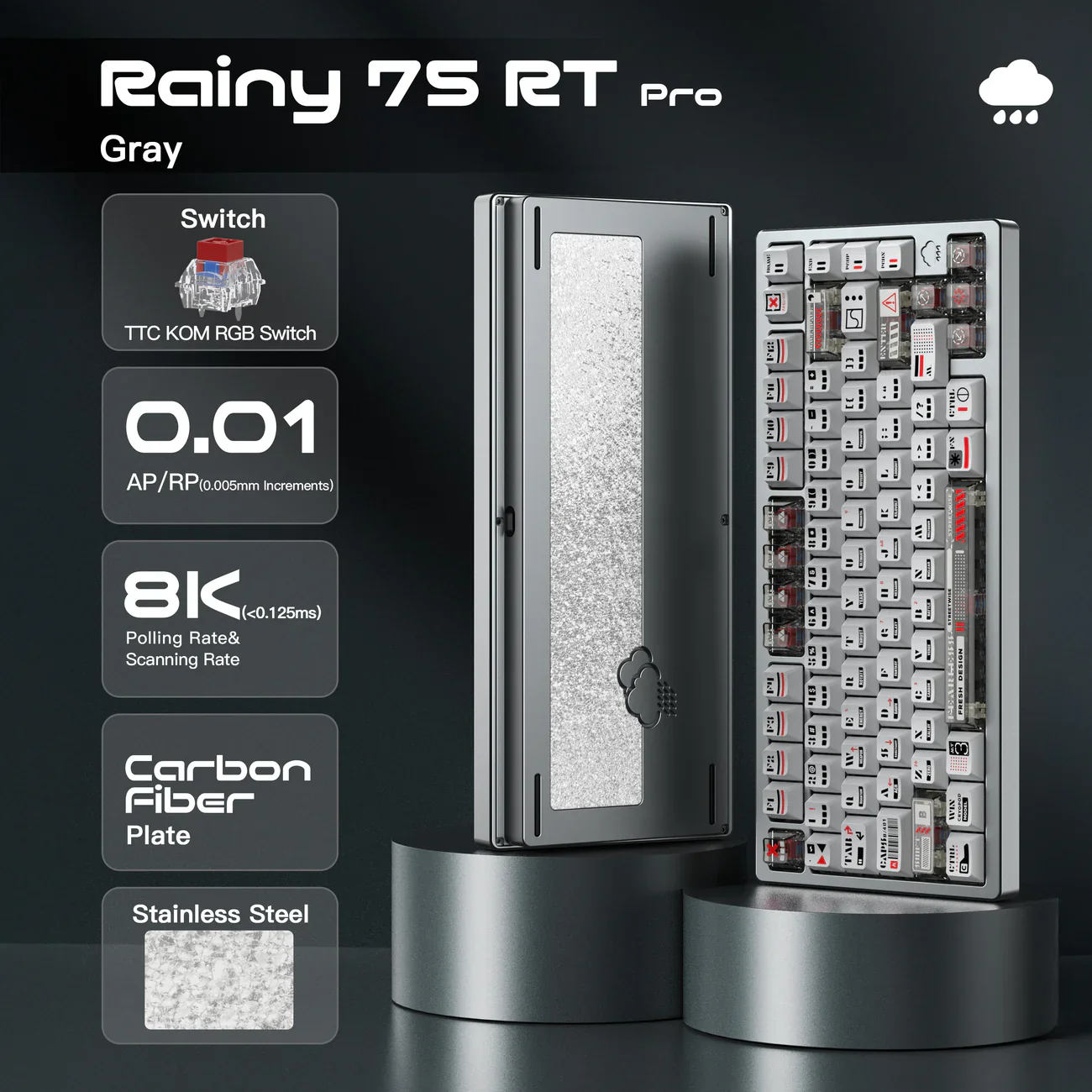

Pro : Carbon Fiber plate / Textured glass base weight

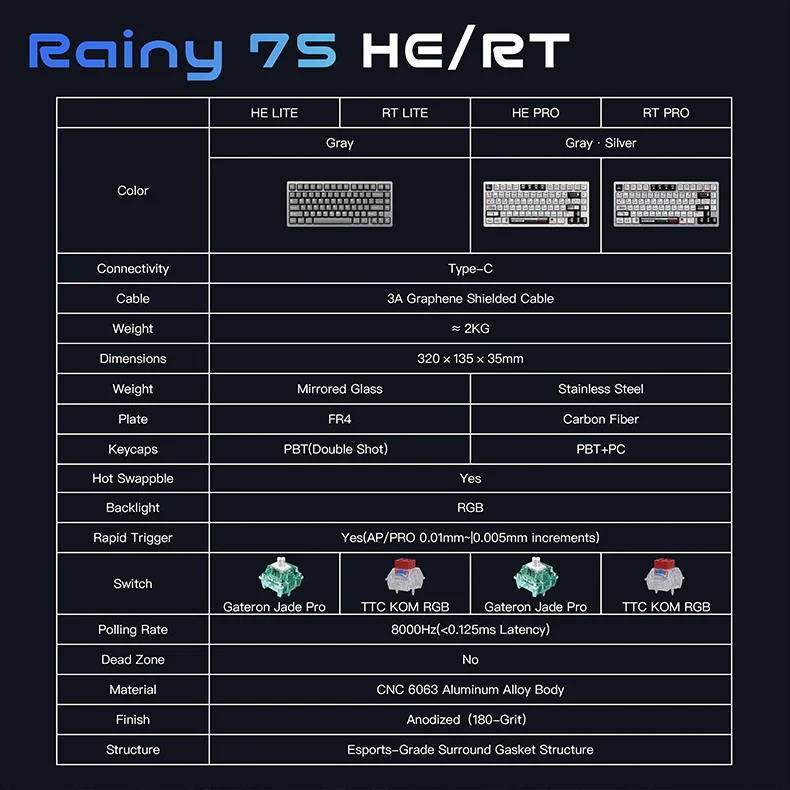

Specifications

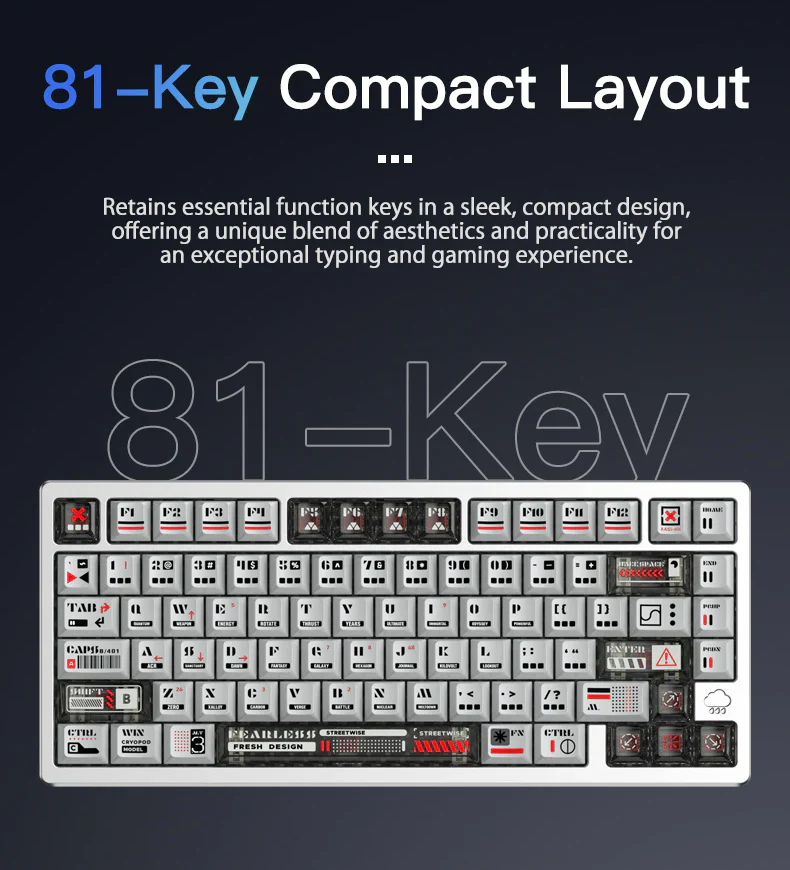

• 75% Layout (81 keys), pre-built
• Surround Gasket Mount Structure
• CNC Anodized 6063 Aluminum Body

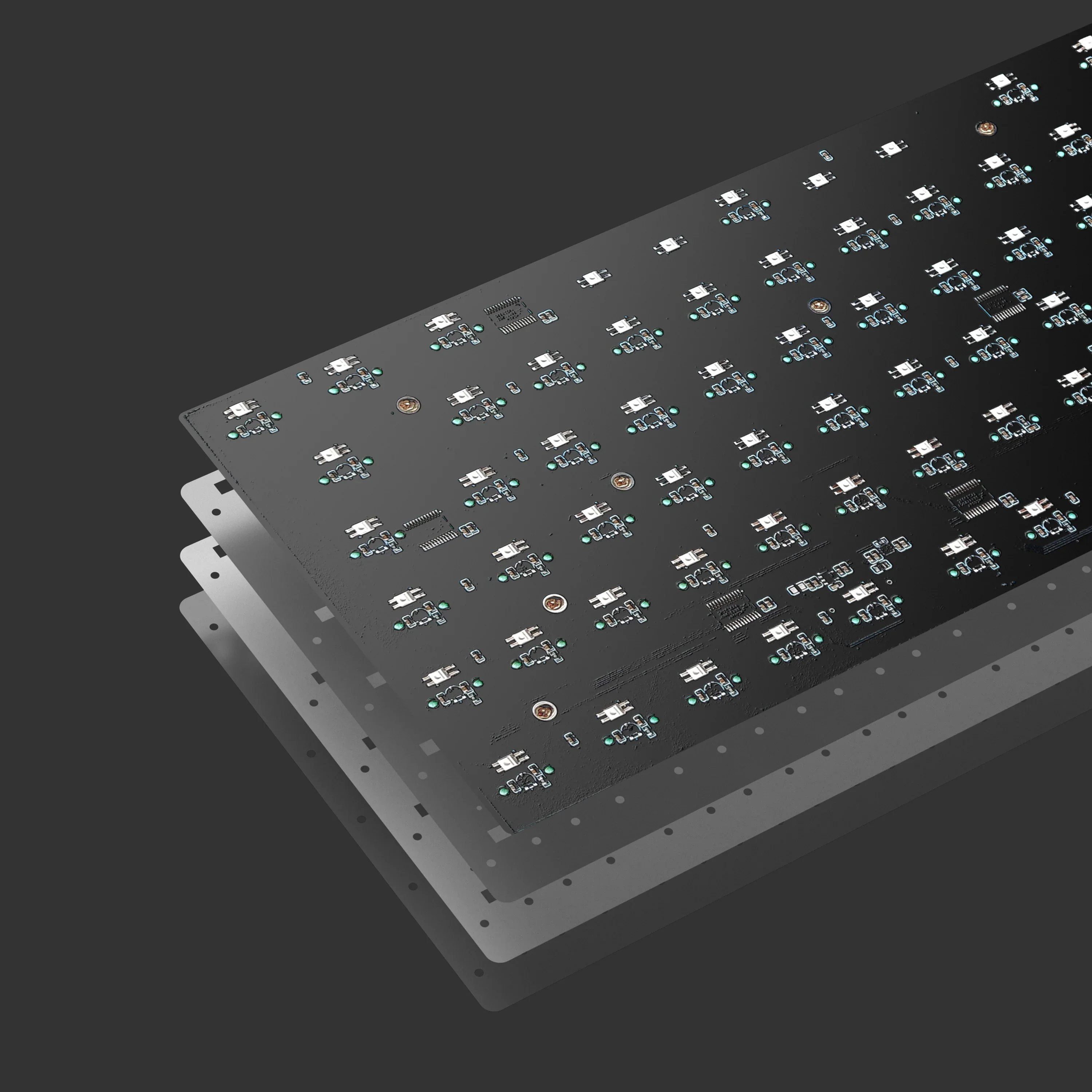

• RGB, 1.6mm, 4 layered PCB for the best EMI reduction

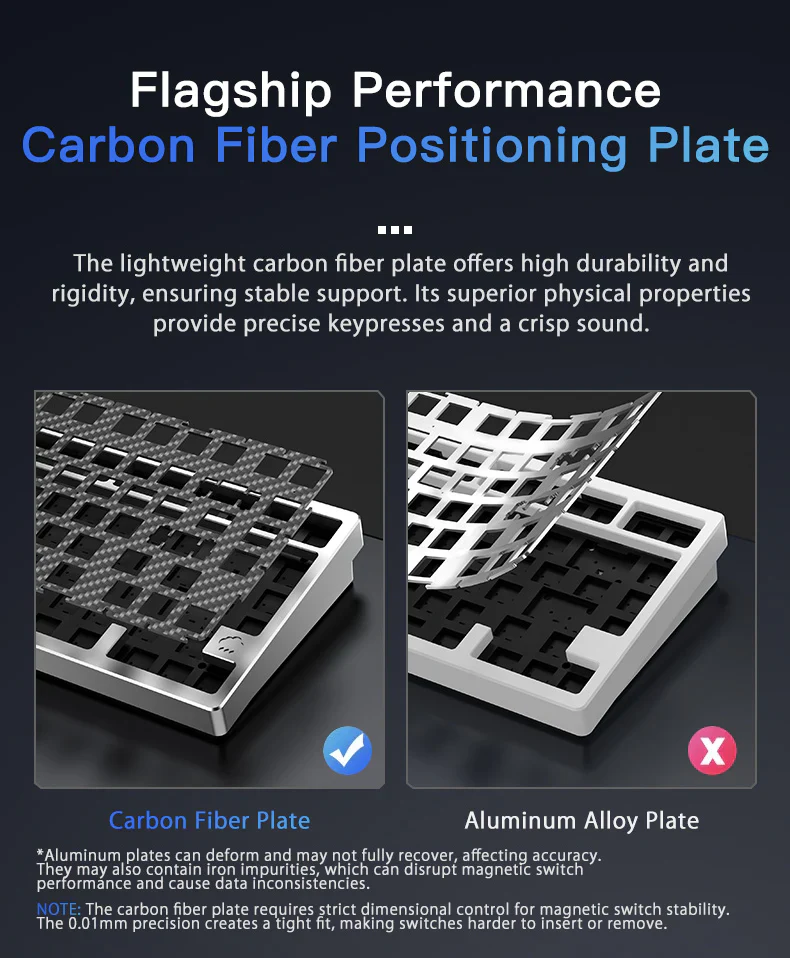

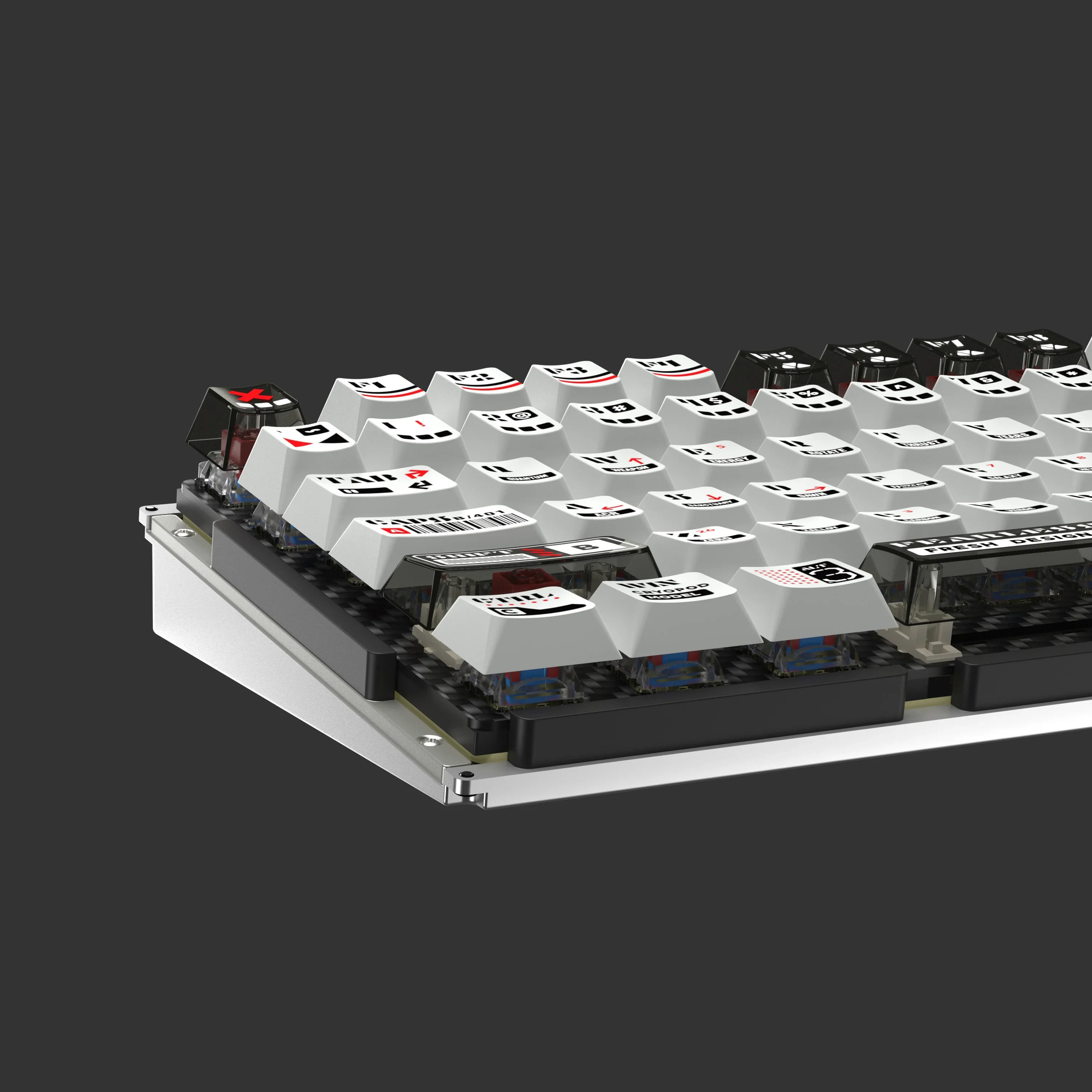

• FR4/Carbon Fiber plate
• Sound Dampening: (3.5mm) PORON plate & bottom foam
• Connectivity : Wired Only (USB-C)
• Actuation : 0.02-4mm (0.005mm step)

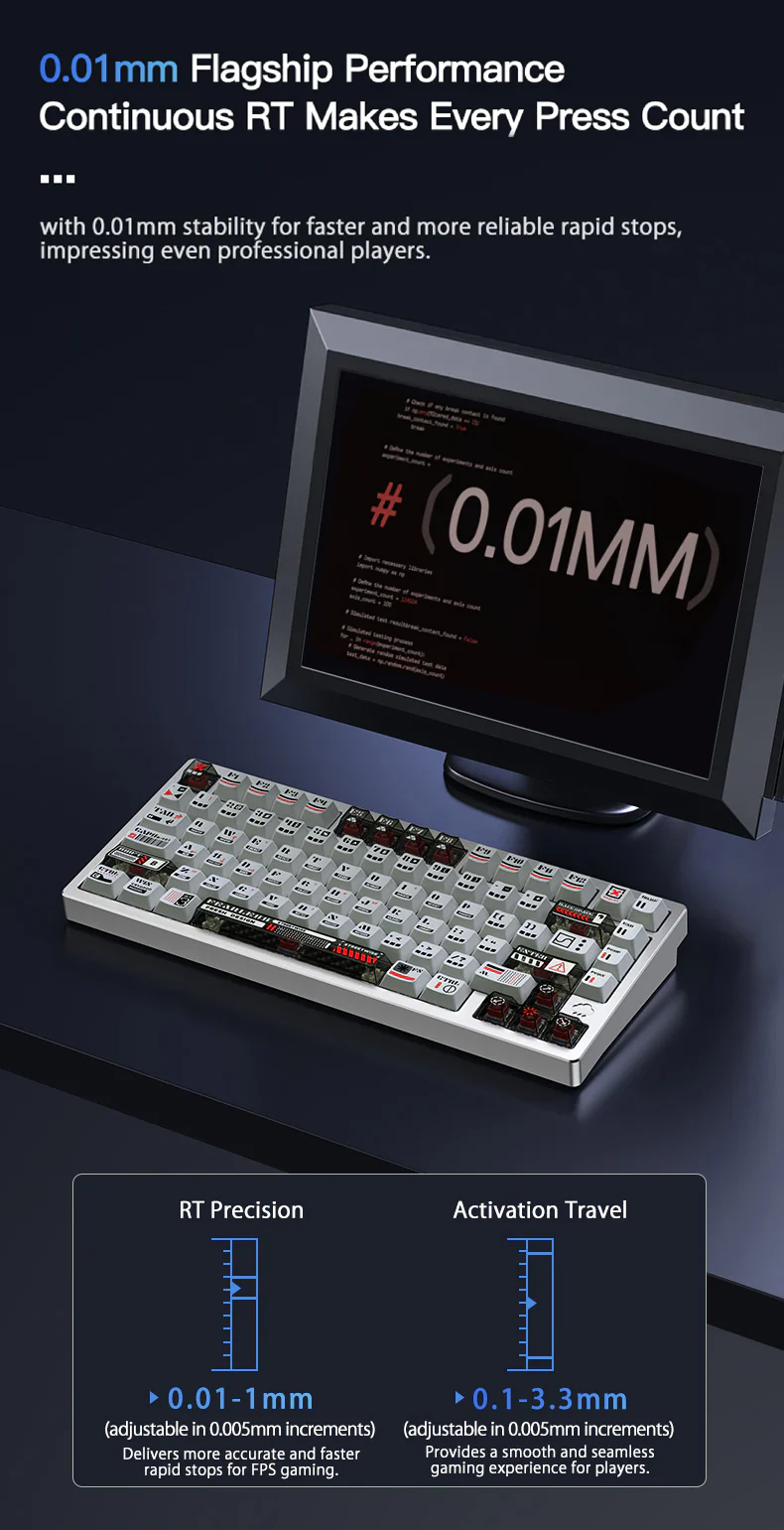

• Rapid Trigger : 0.01-4mm (0.005mm step)

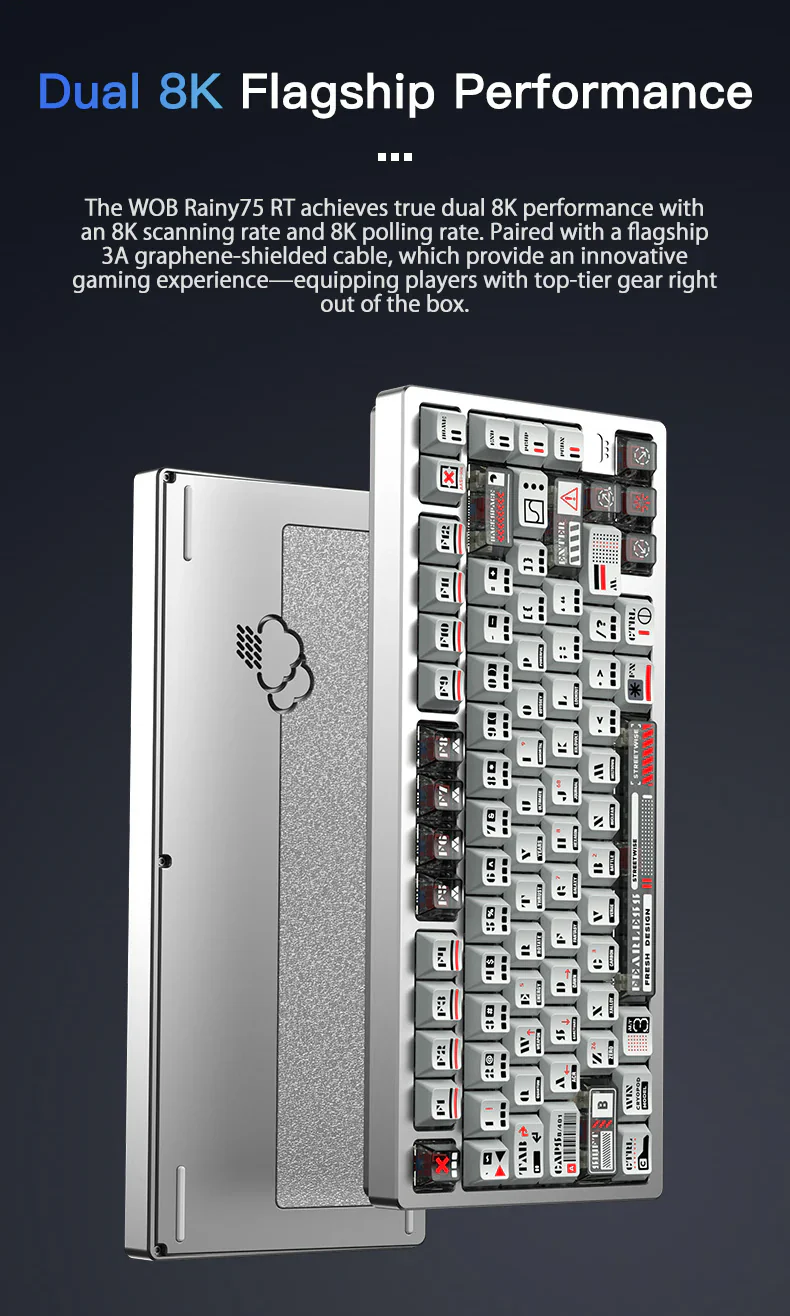

• Polling Rate : 8000Hz (400MHz MCU)
• Low Latency : 0.125ms

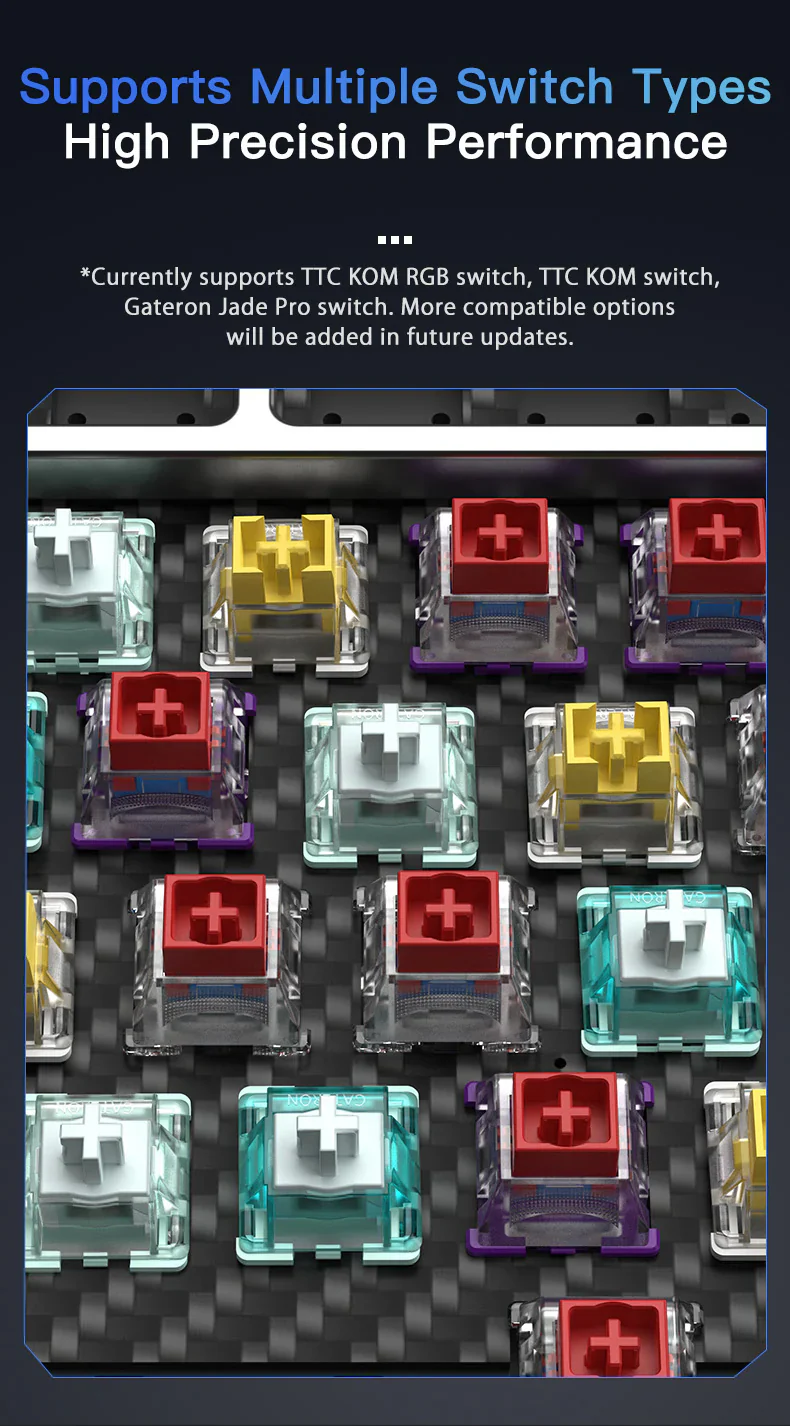

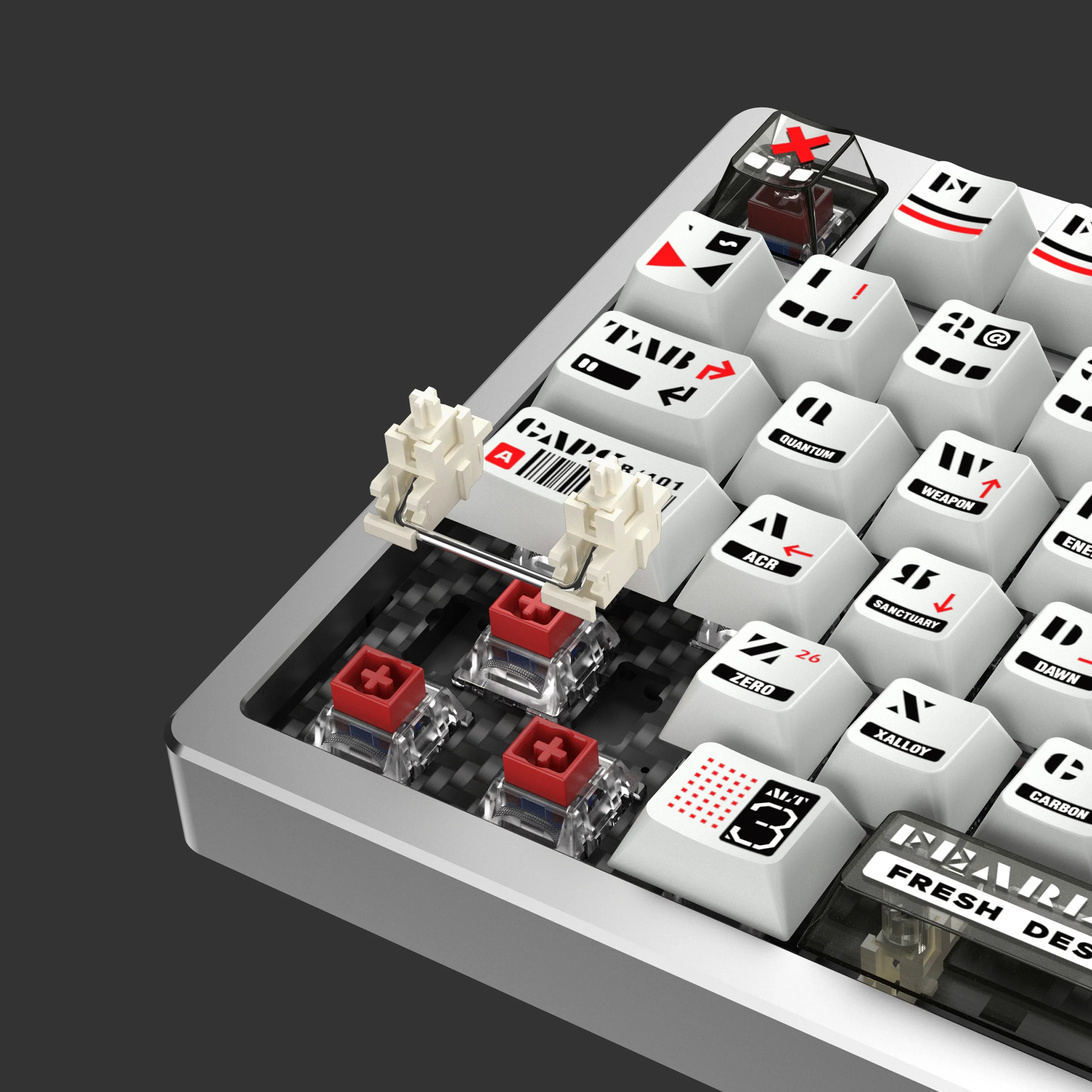

• Switches : TTC x WOB RGB King Magnetic Switch

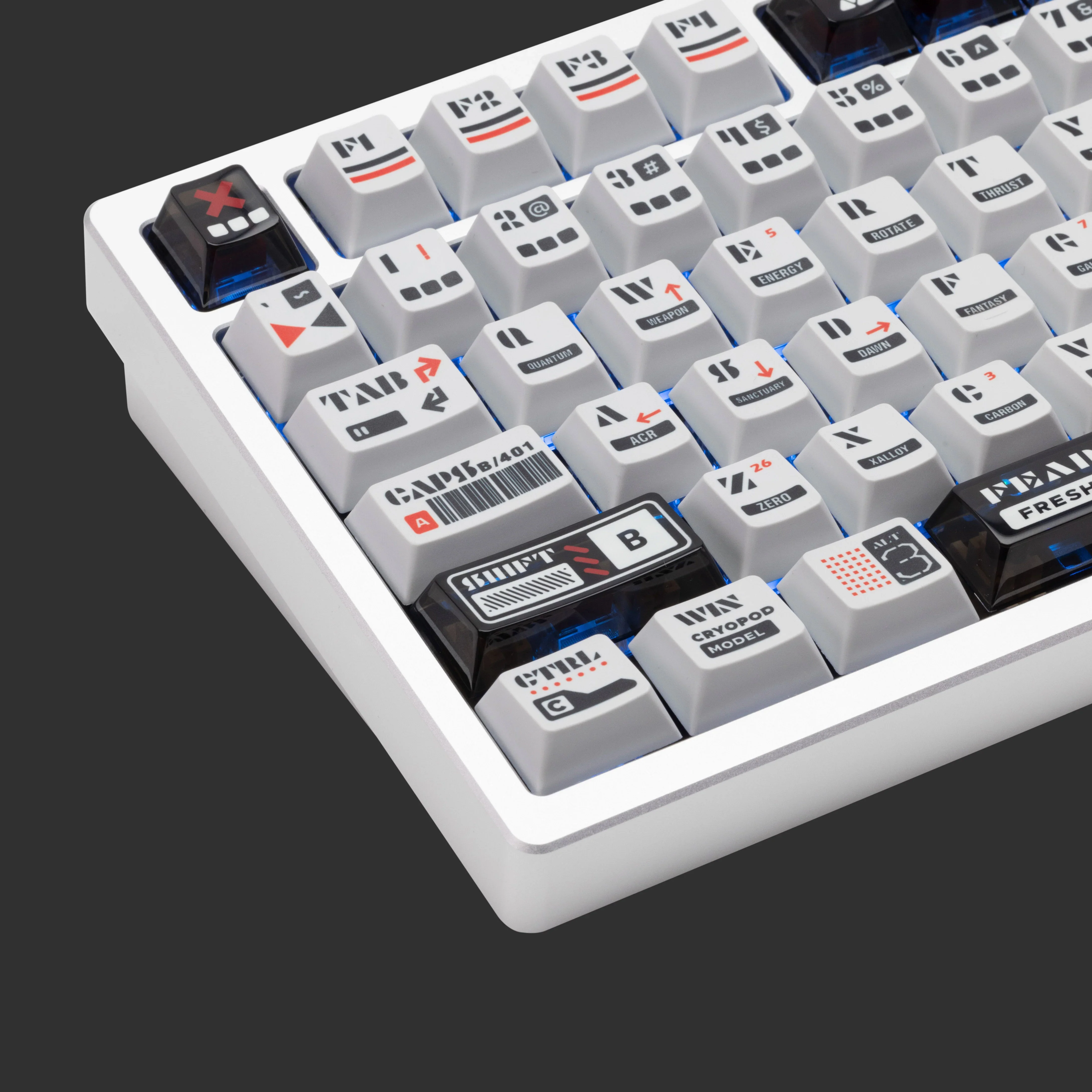

• Keycaps : Double shot PBT, white on grey / Dye Sub + UV PC matching theme
• Configurable with web based software
• Disclaimer : Actual color may vary from photo

Switch

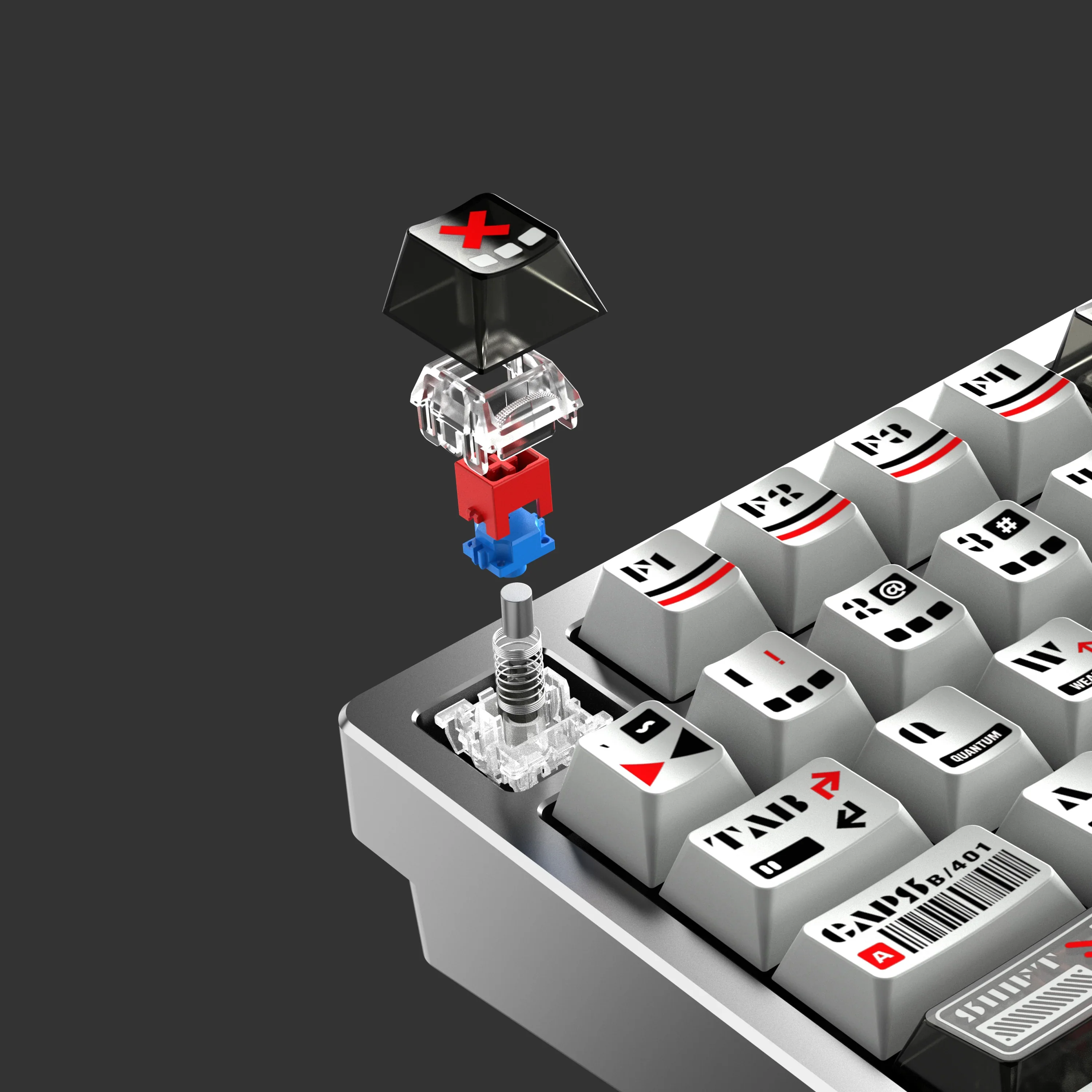

• TTC x WOB RGB King Magnetic Switch
• Force / Travel : 35±5gf / 3.4±0.2mm
• Spring : 21mm
• Initial Magnetic Flux : 100±15gs (1.2mm PCB), 90±15gs (1.6mm PCB)
• Bottoming Magnetic Flux : 640±50gs (1.2mm PCB), 480±50gs (1.6mm PCB)
