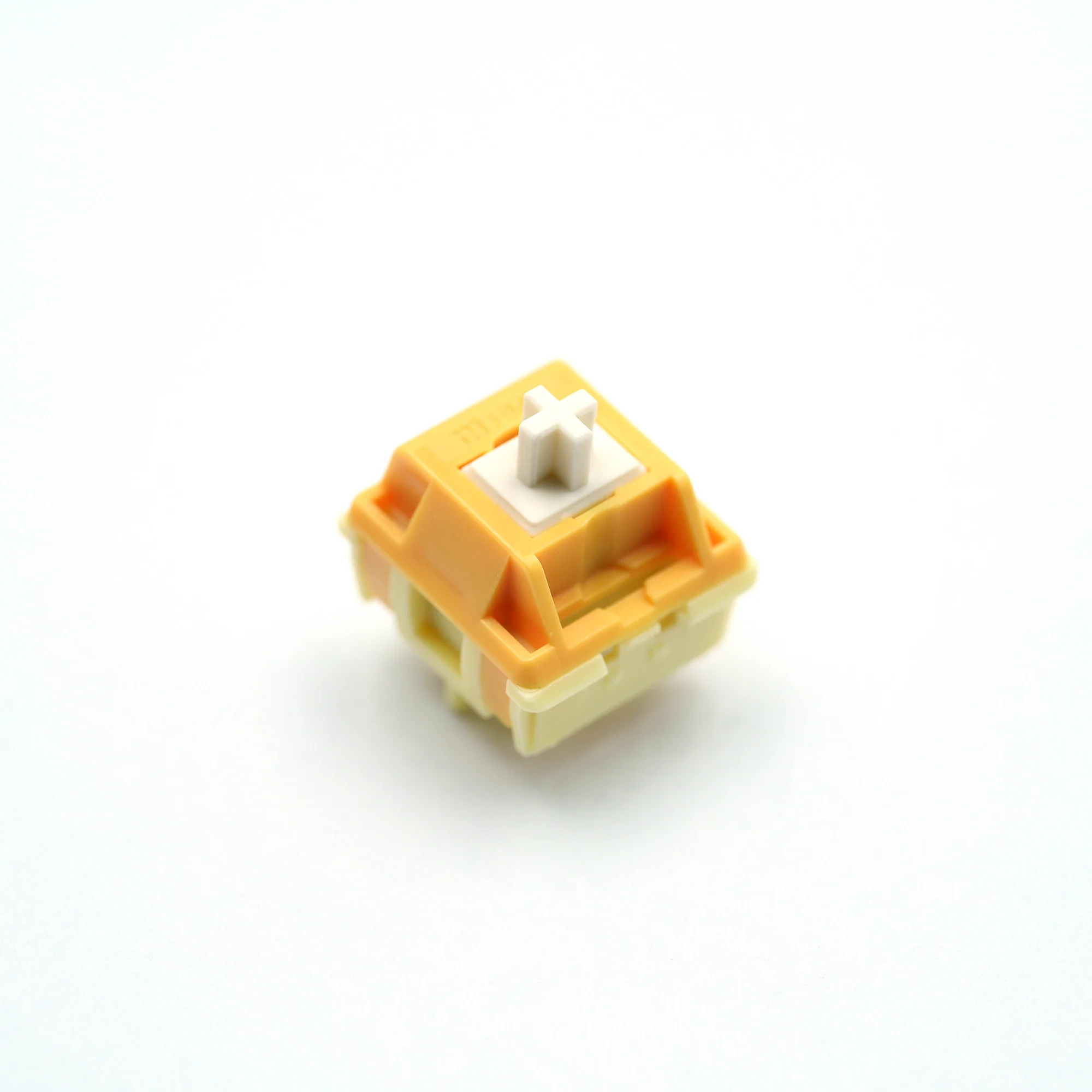

HMX Egg Yolk Linear Switches

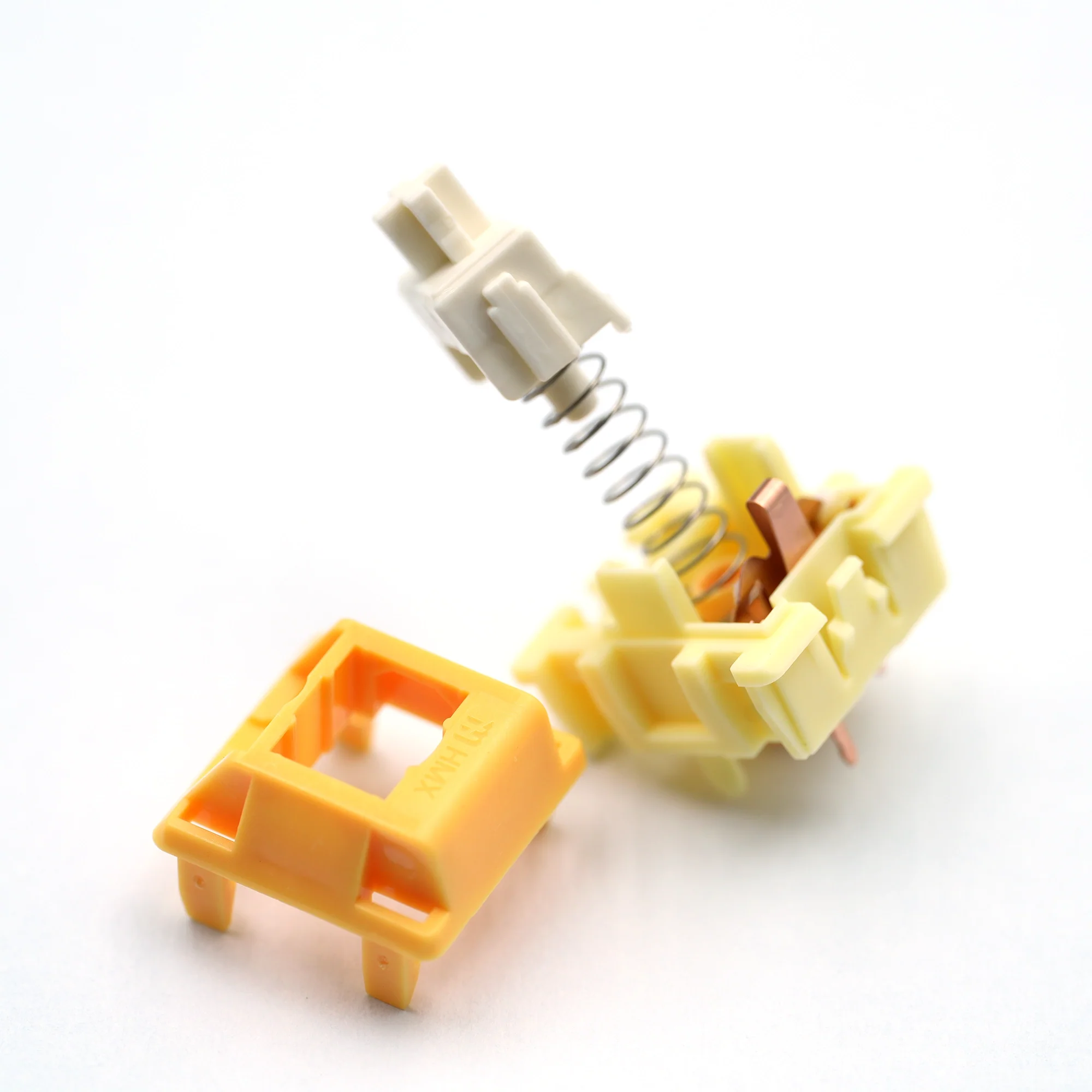

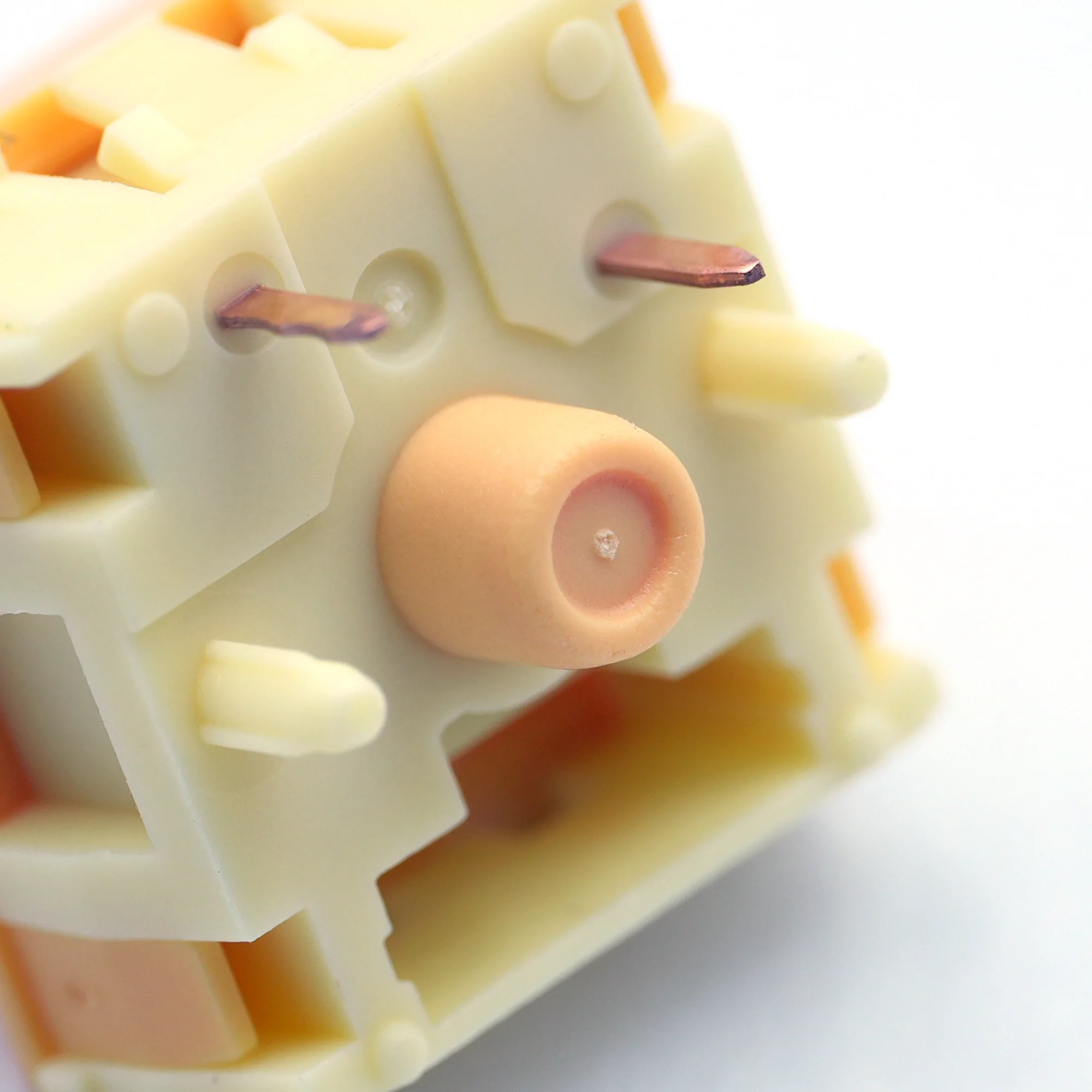

The Egg Yolk features a modified bottom housing to seat a rigid S1 post exactly where the stem bottoms out. This design delivers the crispest clack from HMX so far, offering a fuller and rounder acoustic profile compared to their typical high pitched sound.

HMX Egg Yolk is made using a hybrid molding system, creating more ways to combine and modify how a switch sounds and feels.

Specifications:

• Switch Type: Linear
• Spring Weight: 53g, 22mm KOS Single Stage Extended
• Pre-travel: 2.0mm
• Total Travel: 3.6mm
• Stem Material: M2 (Strengthened PP)
• Top Housing: PC
• Bottom Housing: PA66 with 10% Fiberglass and S1 Mast
• Mount: 5-pin PCB

Switches are sold in quantities of 10.
1 Qty = 10 Switches.
