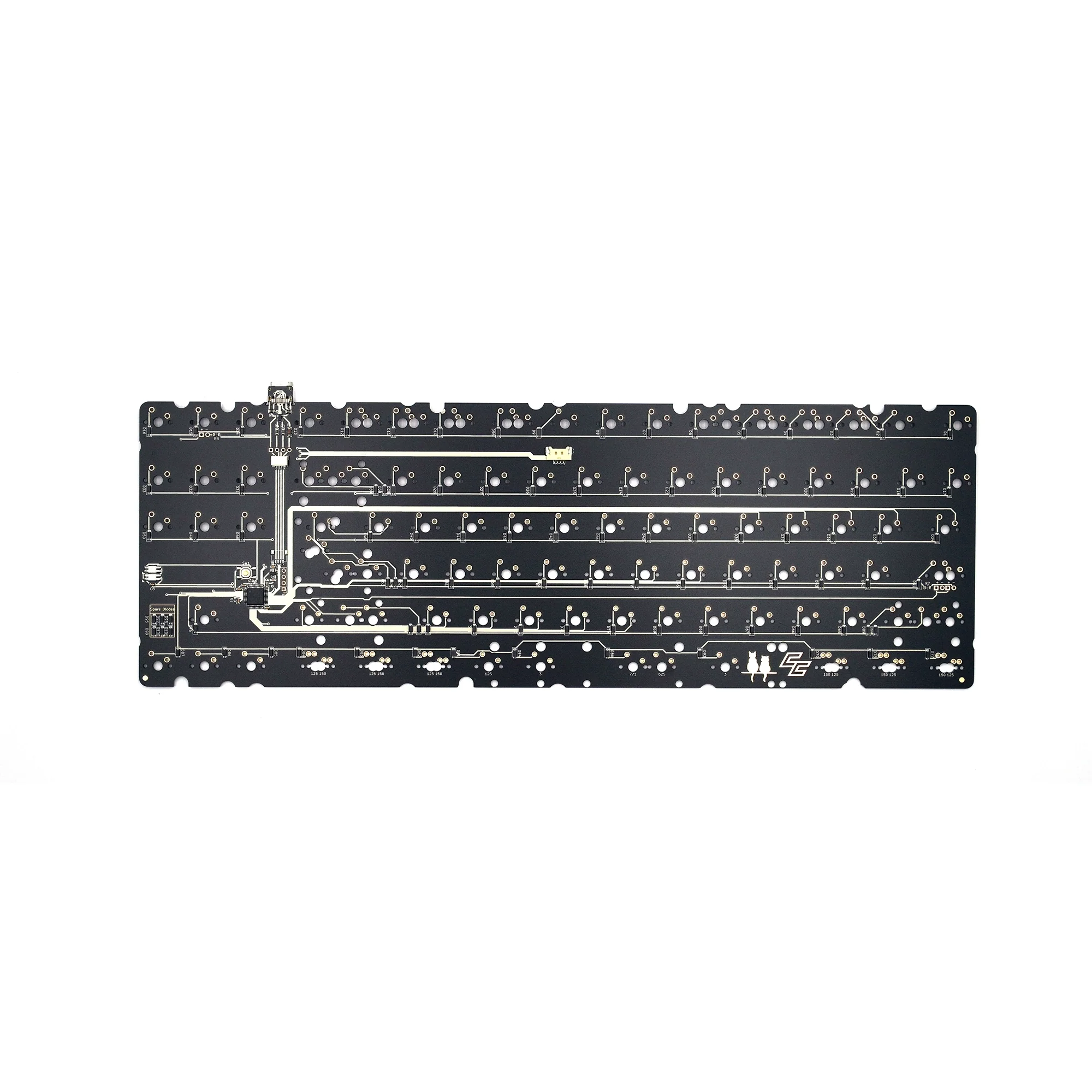

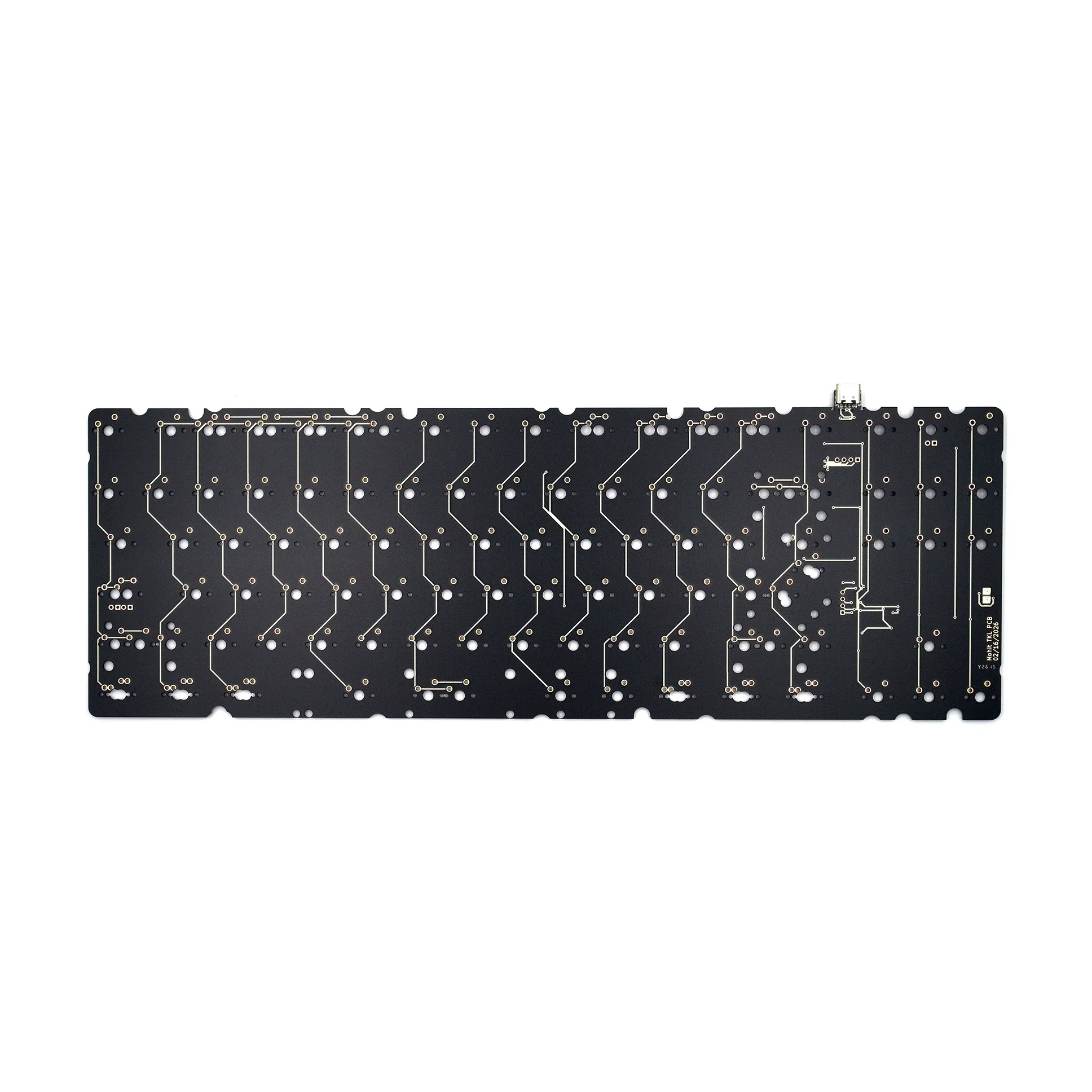

H87/H88 TKL PCB

Mohit PCB json file



Core + Build Details

• H87 / H88 compatible PCB
• QMK / VIAL / VIA compatible
• Black core 1.6mm PCB
• 1.47mm switch holes for Mill-Max compatibility

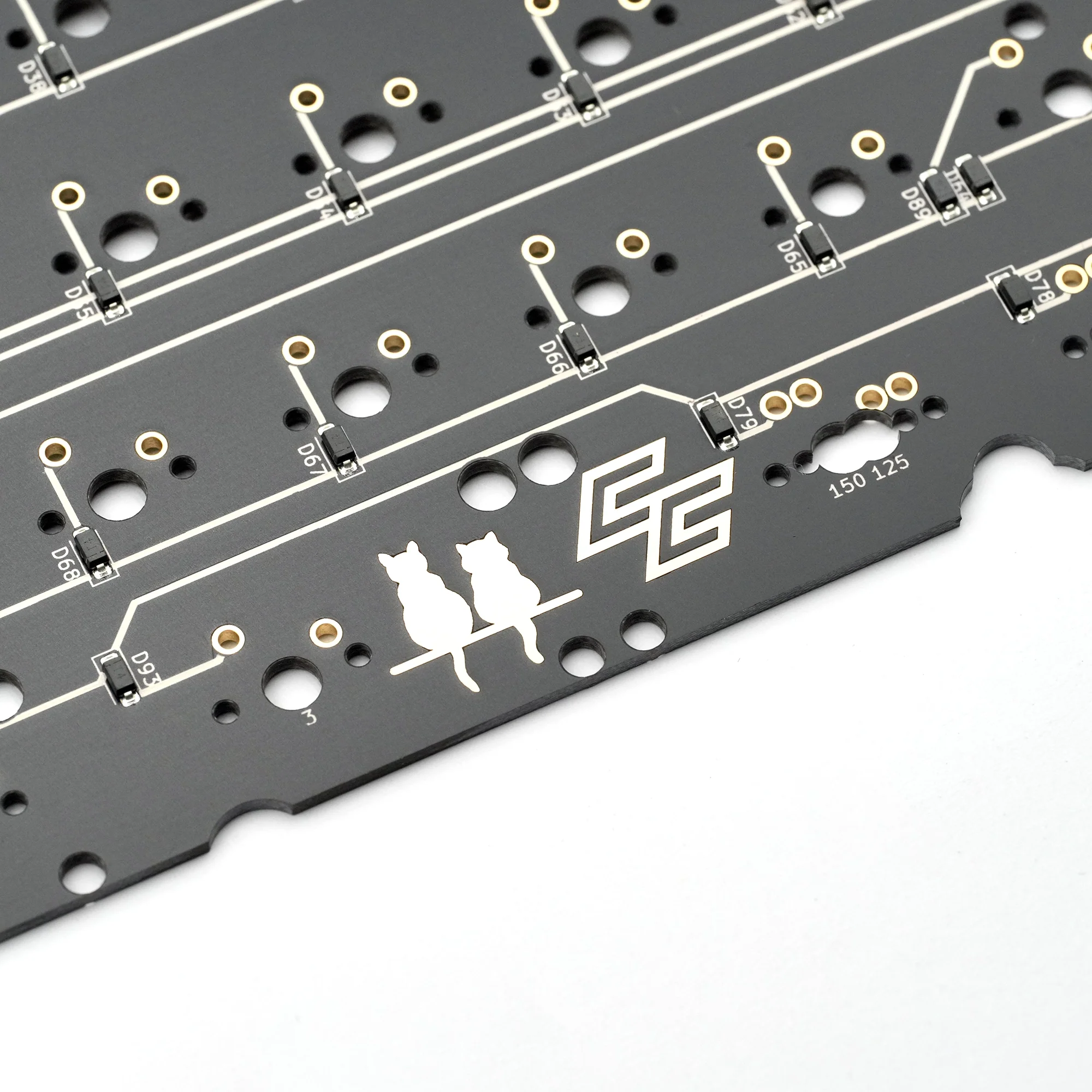

• Spare on-board diodes for easy replacement
• Through-hole Caps Lock and Scroll Lock LEDs
• Dedicated badge LEDs next to arrow cluster

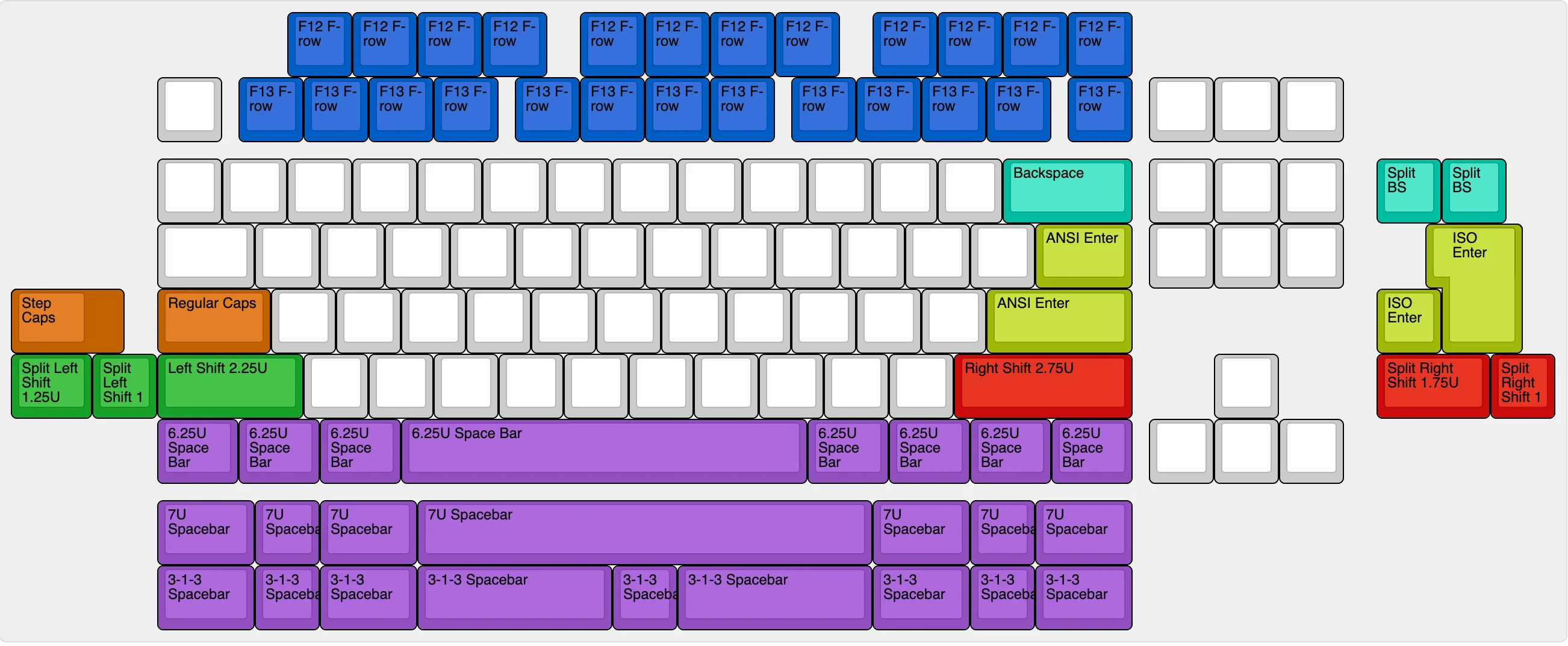

Layout Support

• F12 / F13 F-row
• Split backspace
• Step caps
• ANSI / ISO enter
• Split left shift
• Split right shift
• 6.25u spacebar
• 7u spacebar
• 3-1-3 spacebar

Connector Support

• Front-side USB Type-C
• Back-side USB Type-C
• Break-away USB-C or soldered cable option
• Standard TKL JST position
• JST near MCU (Alina)
• MX 1.25P centered (Ayleen TKL)
