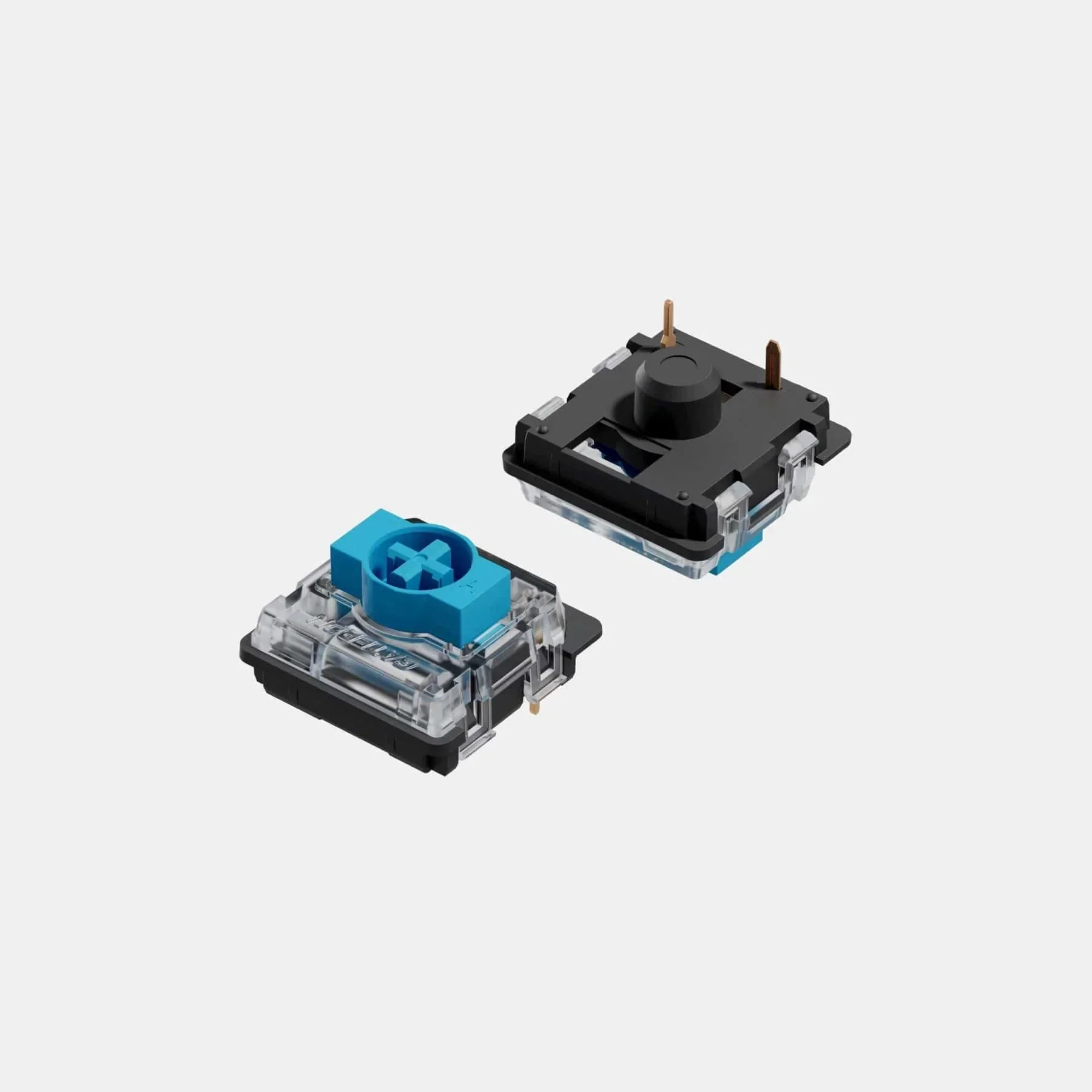

Gateron Low Profile 2.0 Switches

Get ready to say farewell to the struggle of searching for low-profile switches!

We've got you covered (and not just with a blanket).



Minimum Order Quantity: 100 switches per box

Any order below 10 switches will be cancelled with a 4% cancellation fee.

Specifications:

Low Profile Red:
Type: linear
Pre-travel distance: 1.5±0.5mm
Total travel distance: 2.5+0.5/-0mm
Operating force: 45±10gf
Bottom Out force: 60±5gf
Mounting pins:3-pin
Stem Material: pom
Top Cover Material: pc
Bottom Material: pa66
Spring:15mm two-stage spring
Factory lube: no

Low Profile Brown:
Type: Tactile
Pre-travel distance: 1.5±0.5mm
Total travel distance: 2.5+0.5/-0mm
Operating force: 50±10gf
Bottom Out force: 60±5gf
Mounting pins:3-pin
Stem Material: pom
Top Cover Material: pc
Bottom Material: pa66
Spring:15mm two-stage spring
Factory lube: no





Low Profile Blue:
Type: Clicky
Pre-travel distance: 1.5±0.5mm
Total travel distance: 2.5+0.5/-0mm
Operating force: 52±10gf
Bottom Out force: 60±5gf
Mounting pins:3-pin
Stem Material: pom
Top Cover Material: pc
Bottom Material: pa66
Spring:15mm two-stage spring
Factory lube: no

Kindly note the following:

By purchasing, you agree to our disclaimer for the purchase of mechanical switches.
