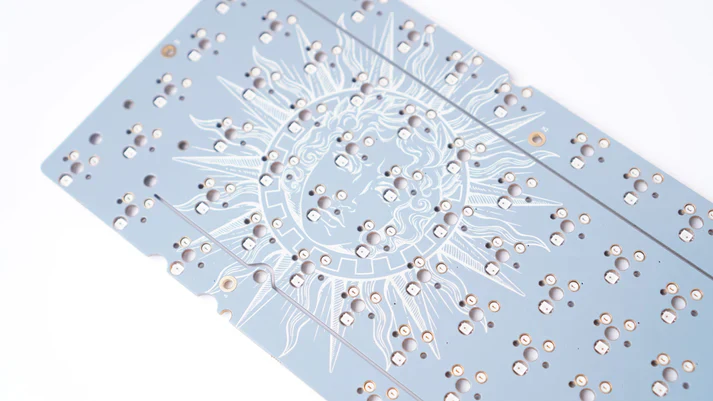

ApolloH Hotswappable PCB

APOLLO TKL PCB x Geonworks
by Gondolindrim

Specifications
QMK/VIA COMPATIBLE

Material : FR-4
Thickness : 1.6 mm

Layout
87H - F12 TKL
87H-T-SC - F12 TKL (TSANGAN)
88H-T-SC - F13 (TSANGAN)
87HL 6.25u - F12 TKL (only 6.25u)
87HL-T-SC 7u - F12 TKL (TSANGAN) (only 7u)

Compatible
87H: F1-8X WK version, FROG TKL F12 WK version
87H-T-SC: F1-8X WK/WKL version, FROG TKL F12 version
88H-T-SC: F1-88 WK/WKL version, FROG TKL F13 version

How to Flash Firmware
- https://geonworks.notion.site/GUIDE-f9aac4e8171c4723b977f87dc5293f10

When plugging the switch into the hot-swap socket, please ensure the contacts on the switch are properly aligned.
When connecting the switch to the hot-swap PCB, place the socket on the floor (desk mat, etc.) as much as possible before connecting it.
Please note that the hot-swap socket is soldered to a thin copper foil, and the socket may fall off if the switch is screwed in too tightly.
Manufacturing country

Made in China
